Sheer Rain Curtain

Sheer Rain Curtain is used to direct the water straight down out of the nozzle in a rain display to allow for a longer vertical drop.

Can have fittings located in A, B or C. (see illustration below)

Must have Minimum of 1.5” Nozzle Length
Units with a LIGHT have Minimum of 2.5” Nozzle Length

Order Number Legend

Order number legend-RAIN CURTAIN

Nozzle Configuration

Rain Curtain nozzles
  • Choice of back feed or bottom feed.
  • Single row rain nozzles.
  • Color changing LED lights available for most lengths
  • Able to sync with all major automation systems
  • Perfect for pergolas, soffits, overhangs!
  • Custom Sizes are available with Minimal Wait Time.
  • We can provide 10′, 12′, 20′ or even Larger Waterfalls!

Standard Order Numbers

Order
Number
Unit
Length
Nozzle
Length
SWD6-036-15-1-A-xx36”1.5"
SWD6-036-15-2-A-xx36”1.5"
SWD6-048-15-1-A-xx48”1.5"
SWD6-048-15-2-A-xx48”1.5"
SWD6-60-15-1-A-xx60”1.5"
SWD6-60-15-2-A-xx60”1.5"
SWD6-072-15-1-A-xx72”1.5"
SWD6-072-15-2-A-xx72”1.5"
SWD6-084-15-1-A-xx84”1.5"
SWD6-084-15-2-A-xx84”1.5"
SWD6-096-15-1-A-xx96”1.5"
SWD6-096-15-2-A-xx96”1.5"
SWD6-108-15-1-A-xx108”1.5"
SWD6-108-15-2-A-xx108”1.5"
SWD6-120-15-1-A-xx120”1.5"
SWD6-120-15-2-A-xx120”1.5"
SWD6-132-15-1-A-xx132”1.5"
SWD6-132-15-2-A-xx132”1.5"
SWD6-144-15-1-A-xx144”1.5"
SWD6-144-15-2-A-xx144”1.5"

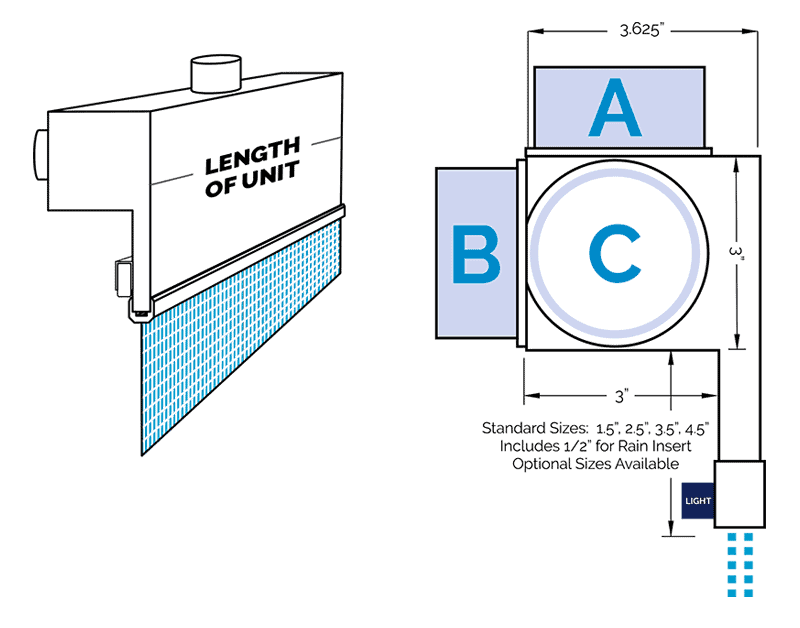

Sheer Rain Curtain details
Sheer Rain Curtain brackets

Video courtesy of
Green O’Aces Pools and Landscape

Video courtesy of Pool Pro Office

Video courtesy of Pool Pro Office

Video courtesy of
Franco Property Services

Video courtesy of Pool Pro Office

Standard Nozzle Configurations

1/8″ Single Row

  • 6 – 8 : Gal/ min/ ft
Rain nozzle 1-8

3/16″ Single Row:

  • 9 – 12 : Gal/ min/ ft
Rain nozzle 3-16

1/4″ Single Row:

  • 12 – 16 : Gal/ min/ ft
Rain nozzle 1-4
